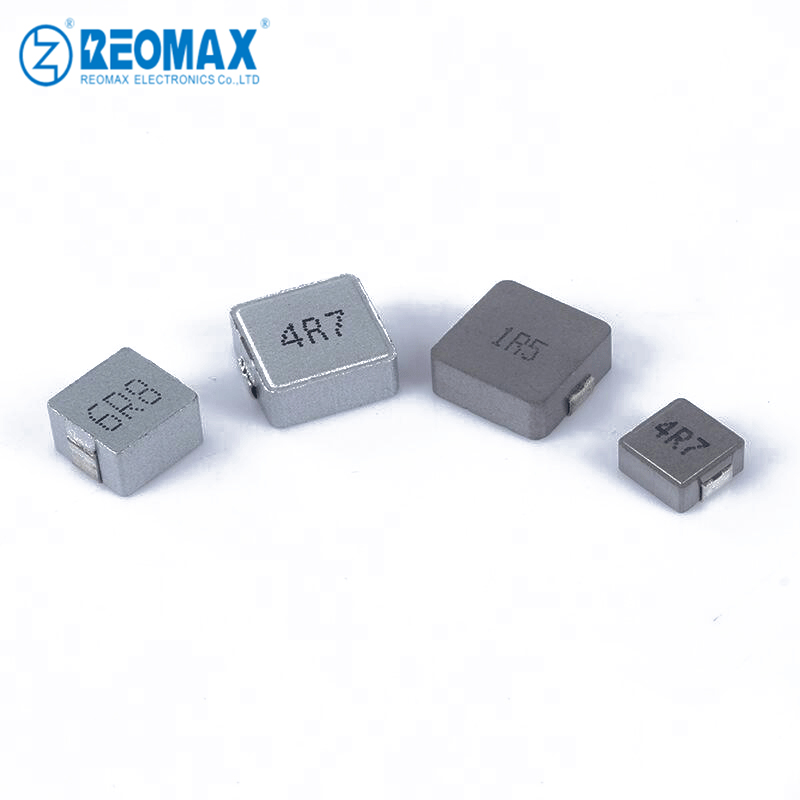

CST Series integrated molding Inductors

In the process of manufacturing integrated molding inductors, some domestic manufacturers of integrated molding inductors produce substandard production environment and choose inferior raw materials, leading to product problems

The integrated forming inductor iron powder must be mixed with acetone and other volatile organic chemicals. The organic chemicals are easy to be damp and become caked into granules under the conventional temperature and humidity. When the iron powder cannot be stirred evenly in the preparation, the organic chemicals such as acetone are not completely volatilized in the baking process of the iron powder. Will cause mixed with granular organic synthesis raw material chemical residue die casting into the body of the integrated molded inductor product.

The bulge on the surface of integrated inductor is caused by the evaporation of acetone residual in the inductor. The change of acetone from solid to gas will lead to the formation of a cavity in the inductor, resulting in the change of inductance and the increase of inductance loss. More serious will make the integrated forming inductor internal short circuit, causing serious impact on the circuit.

Product Features：

1.        1、High current resistance: High current inductor coil is wound with thick copper wire and skew wire, which can withstand high current.
2.        2、 High stability: The high current inductor adopts the fully enclosed magnetic shield structure, with good sealing and high stability.
3.        3、 Wide application range: high current patch inductor has good voltage resistance and long stability, can be used in computer motherboard, single chip microcomputer, graphics card and other long time working equipment.Chip power inductance, this type of chip inductance is also called power inductance, high current inductance. Patch inductance is a property of a closed loop. When the coil of the patch inductor passes the current, the patch inductor forms a magnetic field induction in the coil, and the induced magnetic field will generate an induced current to resist the current through the coil. The function of the patch inductor in the circuit is to generate a changing magnetic field when passing through the unstable constant current, which will in turn affect the current. The patch inductor is like an inductor in the power supply loop. The inductor is direct to DC and has high resistance to high-frequency pulse, so it can pass DC and prevent AC pulse.

•  Due to its unique structure and coil technology, low DC impedance and high allowable current are achieved;
•  Adopt automatic surface loading;
•  Excellent weldability and environmental resistance;
•  Suitable for reflow welding;
•  European ROHS counterpart;
•  Including lead-free terminals.
